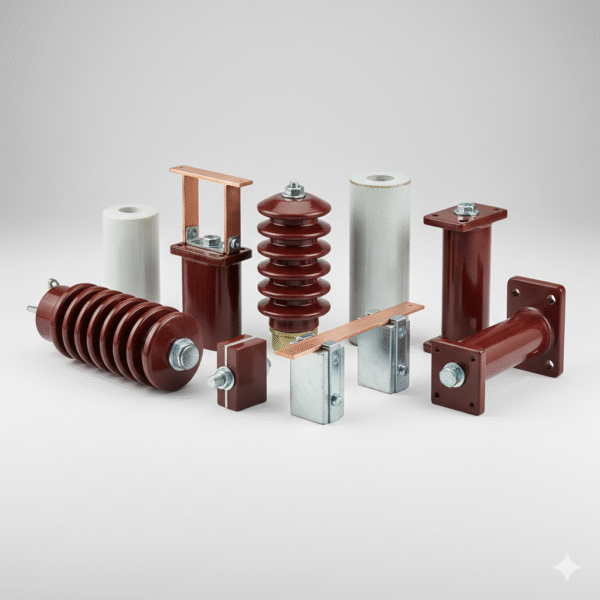

Busbar Insulators

Description

Product Range / Variants

• Porcelain Busbar Insulators

• Epoxy / Composite Busbar Insulators

• Polyamide / Nylon Busbar Insulators

• High-Voltage Busbar Insulators

• Low-Voltage Busbar Insulators

• Post Type Busbar Insulators

• Cantilever / Horizontal Busbar Insulators

• Customized Dimensions and Load Ratings

Key Features

• Excellent electrical insulation

• High mechanical strength and stability

• Heat and fire-resistant construction

• Resistant to moisture, chemicals, and corrosion

• Suitable for high-current busbars

• Easy to install and maintain

• Compatible with copper and aluminium busbars

• Long service life under industrial conditions

Technical Specifications

• Material: Porcelain, Epoxy Resin, Polyamide, Nylon, Fiberglass Reinforced Plastic (FRP)

• Voltage Rating: Low voltage (up to 1kV) and Medium voltage (up to 36kV)

• Current Rating: Depends on busbar specification and insulator size

• Creepage Distance: As per IEC / IS standards for voltage class

• Operating Temperature: -40°C to +120°C (depending on material)

• Standards Compliance: IEC 60815, IS 2544, IS 7421

• Mounting Type: Post / Clamp / Cantilever / Custom

Applications

• Switchgear and distribution panels

• Industrial and commercial electrical installations

• Power substations

• Renewable energy systems (solar, wind)

• Busbar support in control panels

• Motor control centers (MCC)

• Transformer connections

• Electrical safety isolation in high-current systems

Benefits

• Provides reliable insulation for safe electrical operation

• Prevents short circuits and leakage currents

• High mechanical strength ensures stable busbar support

• Resistant to heat, fire, and environmental stress

• Easy installation and maintenance

• Compatible with multiple busbar materials and sizes

• Enhances overall system reliability and safety

Material Grades / Build Options

• Materials: Porcelain, Epoxy Resin, Polyamide, Nylon, FRP

• Insulation Type: Solid, Hollow, or Laminated for enhanced creepage

• Mounting Options: Post, Clamp, Cantilever, Custom designs

• Voltage Ratings: Low voltage (<1kV), Medium voltage (1kV – 36kV)

• Mechanical Strength: Standard or High-load bearing versions

• Surface Finish: Smooth or textured to prevent flashovers
