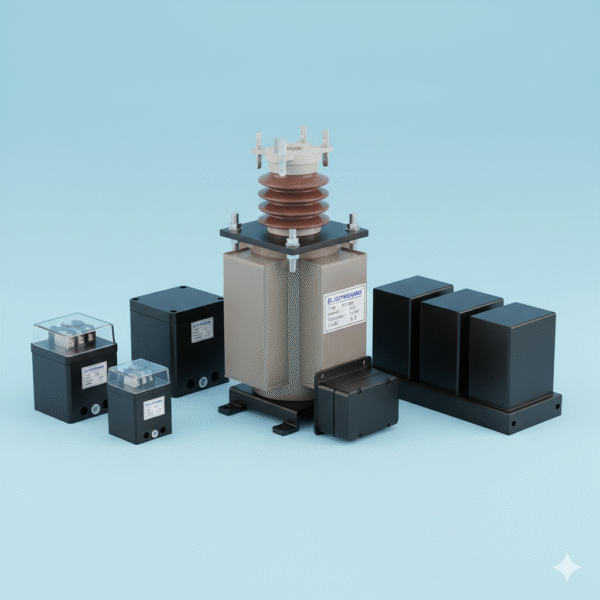

Potential Transformer (PT) / Voltage Transformer (VT)
A Potential Transformer (PT), also known as a Voltage Transformer (VT), is an electrical device used to step down high voltage to a lower, safe level for metering, protection, and monitoring purposes. PTs provide accurate voltage measurement while isolating metering and protection devices from high-voltage circuits. They are widely used in substations, power distribution systems, and industrial installations to ensure safe and precise voltage monitoring.
- Description
Description
Product Range / Variants
-
Indoor Potential Transformers
-
Outdoor Potential Transformers
-
Single-Phase Voltage Transformers
-
Three-Phase Voltage Transformers
-
Metering PTs (High Accuracy)
-
Protection PTs (High Surge Withstand Capability)
-
Cast Resin Insulated PTs
-
Oil-Immersed / Oil-Filled PTs
Key Features
-
Accurate voltage step-down for safe metering and protection
-
High insulation strength for reliable operation
-
Compact and robust design for indoor or outdoor use
-
Compatible with energy meters, protection relays, and SCADA systems
-
Standardized primary and secondary voltage ratings
-
Flame-retardant and weather-resistant housing for outdoor PTs
-
Low burden and minimal voltage drop
-
High mechanical and electrical durability
Technical Specifications
-
Primary Voltage Rating: Up to 36kV (medium voltage PTs), up to 132kV / 220kV for high-voltage PTs
-
Secondary Voltage Rating: 110V / 120V / 100V (standard secondary voltages)
-
Accuracy Class: 0.2, 0.5, 1.0, 3.0 (IEC / IS standards)
-
Frequency: 50Hz / 60Hz
-
Burden: 5 – 15 VA (depending on type and application)
-
Insulation Level: Up to 36kV (medium voltage)
-
Standards Compliance: IEC 60044-2, IS 3156
-
Operating Temperature: -25°C to +55°C
Applications
-
Voltage measurement in substations and switchyards
-
Energy metering in industrial, commercial, and residential installations
-
Protection relay circuits for overvoltage, undervoltage, and fault detection
-
Monitoring and automation in power distribution systems
-
Renewable energy systems (solar/wind) voltage monitoring
-
SCADA and remote monitoring integration
-
Industrial control panels and motor control centers
Benefits
-
Provides safe and accurate voltage measurement
-
Isolates metering and protection devices from high-voltage circuits
-
Enables precise energy metering and system monitoring
-
Enhances protection system reliability and fault detection
-
Durable design suitable for indoor and outdoor environments
-
Minimizes voltage drop and ensures accurate readings
-
Supports integration with advanced energy management and automation systems
Material Grades / Build Options
-
Core Material: Silicon steel laminations, high-quality magnetic steel
-
Housing / Insulation: Cast resin, Epoxy, Porcelain (for outdoor PTs), Oil-Filled Enclosure
-
Mounting Options: Indoor Panel Mount, Outdoor Pole Mount, Substation Mount
-
Primary / Secondary Ratings: Customizable for metering and protection requirements
-
Accuracy Class: 0.2, 0.5, 1.0, 3.0
-
Enclosure Protection: IP20 / IP30 / IP54 / IP65 (depending on environment)
