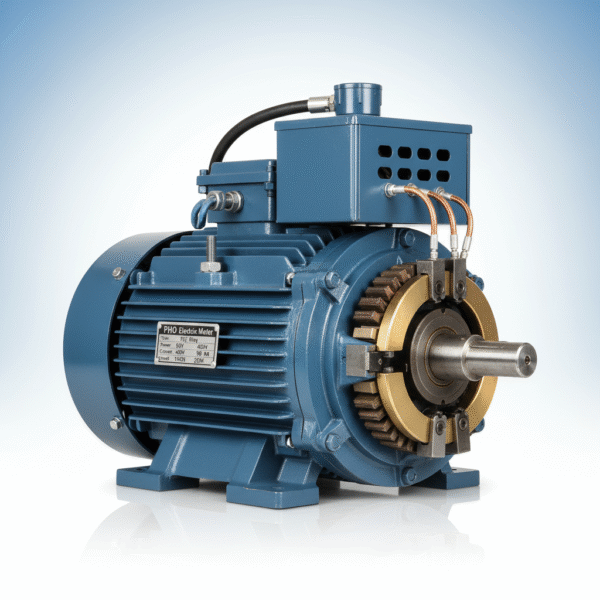

Slip Ring Induction Motor – High-Torque Industrial AC Motor
A Slip Ring Induction Motor is a specialized AC motor designed for applications requiring high starting torque, smooth acceleration, and adjustable speed control. Unlike squirrel cage motors, it uses a wound rotor connected to external resistances through slip rings, allowing fine-tuning of torque and speed during startup. This makes it ideal for heavy-duty machinery, high-inertia loads, and industrial processes that demand controlled motor performance. Slip Ring Induction Motors are robust, reliable, and built to operate under demanding conditions.
- Description
Description
Product Range / Variants
-
Low-Voltage Slip Ring Motors
-
Medium Voltage Slip Ring Motors
-
High-Torque Slip Ring Motors
-
Flame-Proof/Explosion-Proof Slip Ring Motors
-
Foot-Mounted & Flange-Mounted Models
-
Custom Duty Motors for Mills & Heavy Equipment
-
Variable Resistance Control Models
Key Features
-
High starting torque suitable for heavy loads
-
Smooth speed control through external resistances
-
Handles high inertia applications efficiently
-
Rugged construction for harsh environments
-
Reduced mechanical stress during startup
-
Better control over current surges
-
Long operational life with proper maintenance
-
Suitable for continuous industrial operation
Technical Specifications (Typical / Estimated)
-
Voltage: 415V (LV) / 3.3kV, 6.6kV (MV)
-
Frequency: 50 Hz / 60 Hz
-
Power Range: 2.2 kW to 5000 kW
-
Speed: 500 RPM / 750 RPM / 1000 RPM / 1500 RPM
-
Efficiency Class: IE1 / IE2
-
Frame Size: 132 to 1000
-
Protection Class: IP44 / IP55 / IP65
-
Cooling Type: IC411, IC611, IC616
-
Insulation Class: Class F/H
-
Rotor Type: Wound rotor with slip rings
Applications
-
Cranes & hoists
-
Conveyors
-
Crushers & mills
-
Mixers & agitators
-
Rolling mills
-
Pumping systems with high inertia
-
Cement, steel & mining industries
-
Heavy machinery requiring controlled starts
-
Industrial compressors and fans
Benefits
-
Excellent starting torque for heavy-duty applications
-
Smooth acceleration without electrical stress
-
Customizable speed and torque control
-
Suitable for large, high-inertia loads
-
Enhances equipment lifespan by reducing mechanical shock
-
Reliable and durable for industrial environments
-
Ideal for applications where squirrel cage motors are insufficient
Material Grades/Build Options
-
Stator: High-grade silicon steel laminations
-
Rotor: Copper-wound rotor with slip rings
-
Body: Cast iron or fabricated steel housing
-
Insulation: Class F/H thermal-resistant windings
-
Bearings: Heavy-duty roller or ball bearings
-
Slip Rings: Copper alloy with graphite brushes
-
Cooling: TEFC / air-cooled / forced-cooled designs
