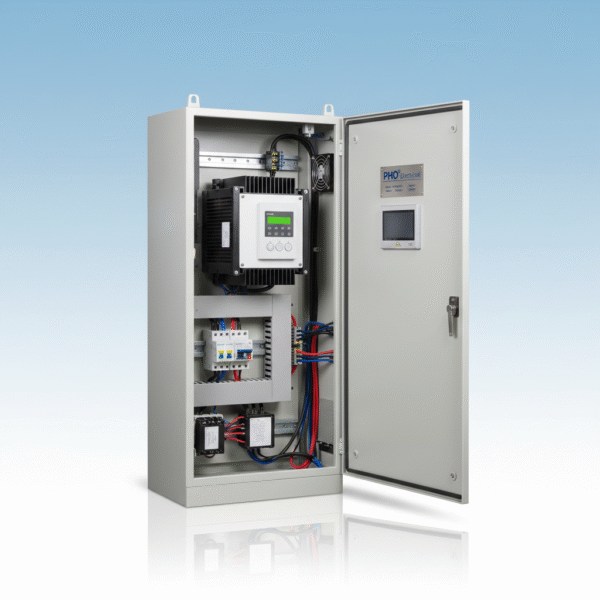

VFD Panel (Variable Frequency Drive Control Panel)
A VFD Panel is an advanced motor control system designed to manage the speed, torque, and direction of electric motors using Variable Frequency Drives. These panels help achieve energy-efficient motor operation by adjusting the motor frequency and voltage. Built with precision engineering, VFD Panels protect motors from electrical faults, reduce power consumption, and ensure smooth operations across industrial applications.
- Description
Description
Product Range / Variants
-
Single VFD Control Panels
-
Multi-Drive VFD Panels
-
VFD with Bypass Panels
-
Indoor & Outdoor VFD Panels
-
VFD Panels with PLC/HMI Controls
-
Low Voltage (LV) VFD Panels
-
Medium Voltage (MV) VFD Panels
-
Pump Control VFD Panels
-
HVAC System VFD Panels
Key Features
-
Soft start/stop control for motors
-
Energy-efficient motor operation
-
Motor protection from overload, overvoltage, short circuit
-
User-friendly digital interface
-
Accurate speed control
-
Built-in fault diagnostics & alarms
-
Reduced mechanical stress and extended motor life
-
Harmonic filters (optional)
-
High reliability and low maintenance
-
Compatible with all major drive brands (ABB, Siemens, Schneider, Delta, Yaskawa)
Technical Specifications
-
Input Voltage: 230V / 415V AC
-
Output Range: 0.75 HP to 500 HP (or customized)
-
Frequency Range: 0 – 400 Hz
-
Protection Class: IP42 / IP55 / IP65
-
Control Modes: V/F, Sensorless Vector, Closed Loop
-
Panel Material: CRCA Sheet Steel (14/16/18 gauge)
-
Cooling: Natural / Forced Air Cooling
-
Busbar Material: Copper / Aluminum
-
Communication Options: Modbus, Profibus, Ethernet (as required)
-
Enclosures: Indoor/Outdoor, Wall-mounted/Floor-standing
Applications
-
Industrial motors and conveyors
-
Water pumping stations
-
HVAC systems & air handling units
-
Manufacturing & process industries
-
Textile & paper mills
-
Pharmaceutical plants
-
Food processing units
-
Commercial buildings
-
Plastic & extrusion machines
Benefits
-
Saves up to 40% energy compared to direct-on-line starters
-
Reduces mechanical & electrical stress on the motor
-
Smooth acceleration and deceleration
-
Improves equipment lifespan
-
Minimizes downtime and maintenance cost
-
Enhances process control & productivity
-
Safe and reliable motor operation
Material Grades / Build Options
-
Enclosure: CRCA powder-coated sheet metal
-
Busbars: High-conductivity copper / aluminum
-
Drive Brands: ABB / Siemens / Schneider / Yaskawa / Delta / Danfoss
-
Cooling: Ventilated / Fan-cooled
-
Protection: IP42 / IP55 / IP65
-
Mounting: Floor-standing / Wall-mounted
-
Optional Add-ons:
-
Harmonic filters
-
Isolation transformer
-
Bypass contactor
-
PLC/HMI integration
-
WE OFFER
Adkrons Exims – Where Innovation Meets Industrial Strength
Adkrons Exims is a leading supplier of world-class industrial equipment, safety solutions, electrical components, and engineered fabrication products. Our focus remains on delivering precision, durability, and consistent performance to help industries operate safely and efficiently. From workshops to large manufacturing units, we are committed to providing reliable products and unmatched customer support.
